3KV Digital Armature Surge Tester

APPLICATIONS

TEST POSITION I) Testing of Stator and Field Coils of DC Armatures (Dual Channel)
This tester is widely used in Railways and Diesel Local sheds for Testing Newly and Rewound DC Traction Motors. The High Pulse current and Pulse Energy is ideally suited to Test the Field and Pole Coils of DC Motor and also completely wound stator with the help of 3-phase Test Select Switch.

  • Stators Of DC Traction Motor
  • Field And Pole Coils

TEST POSITION II) Bar-To-Bar Test for DC Armatures (Single Channel)
To perform this test, the armature to be tested is positioned between centers so that is could be rotated. A fixture with adjustable brushes is used to contact the armature at three positions. Two segments with an equal number of bars are then compared and if the two segments are balanced and contain no faults, a single pattern will appear on the Display. Faults are located by noting the change in the pattern as the armature is rotated bar-to-bar. The important advantage surge testing offers when applied to armature is the ability to locate high resistance carbon shorts. These can be major problem and cannot be detected by the low voltage tests normally done. Because the Surge tester utilizes much higher levels, these faults can be determined and located in most of the cases.

  • Armatures Of DC Motor



CONTACT US

Description

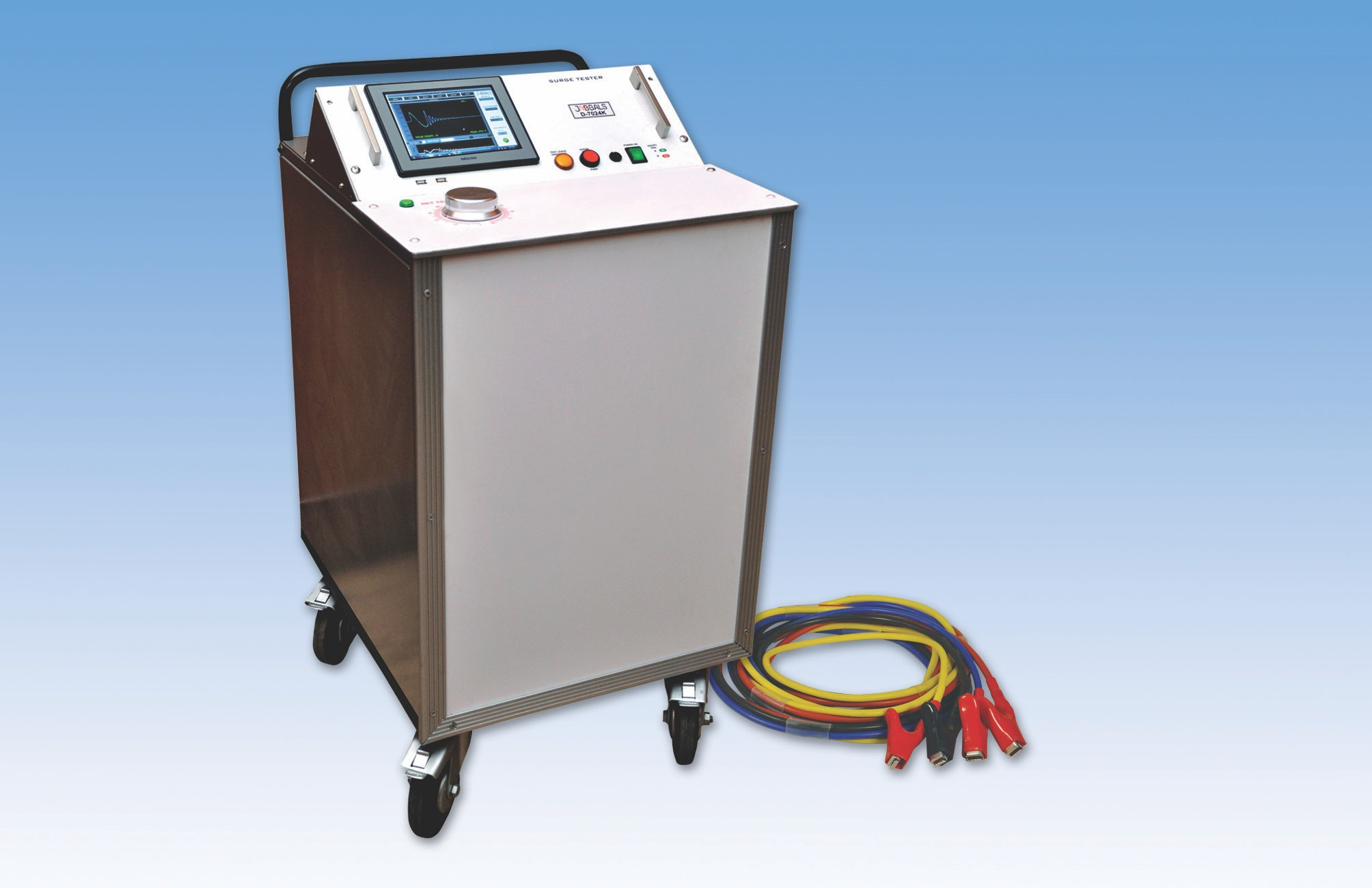

3KV Digital Armature Surge Tester

Model: D-3KAT

The Digital Armature Surge Tester with bar-to-bar test is a cost-effective solution to check the quality of Small to Large range of DC Traction Motors ideally suited for Railways. The Bar-To-Bar Test is provided to test the Low impedance of the Series wound Armatures and Field coils of DC Traction Motors. The Surge Tester has an Embedded Industrial PC with 8 inch Touch screen Display and software to Store, Recall and Print the Test Reports.

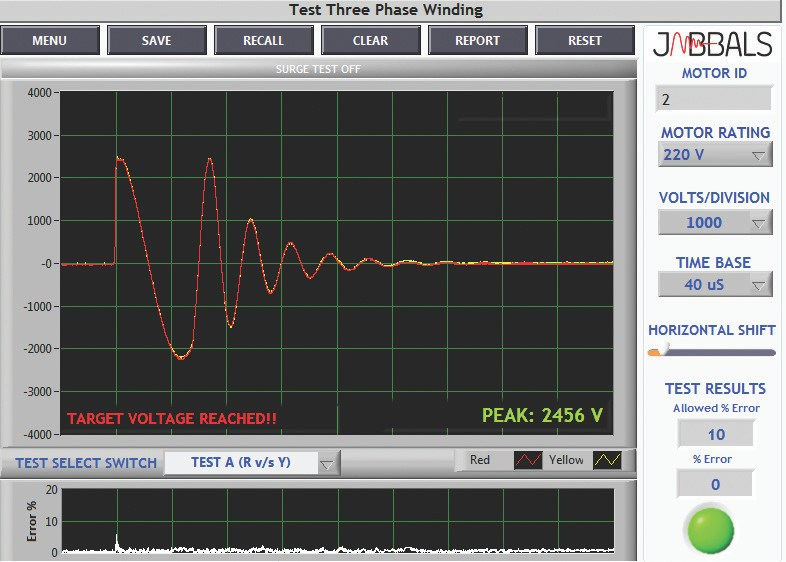

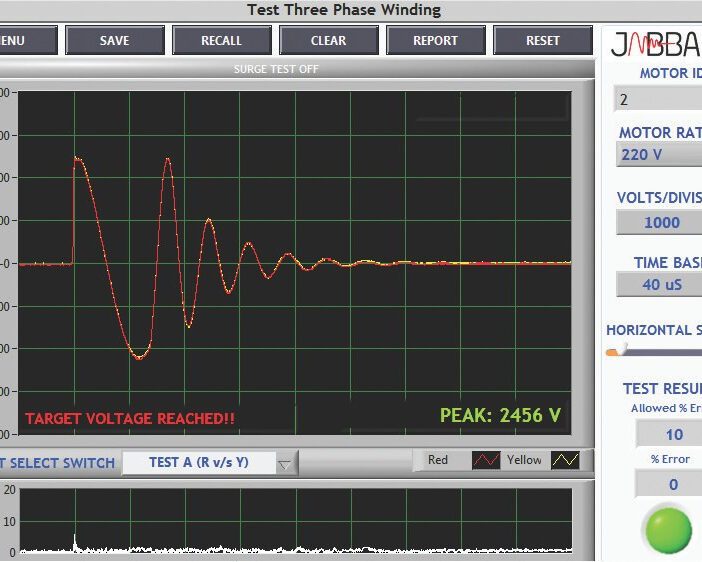

SOFTWARE TEST SCREEN





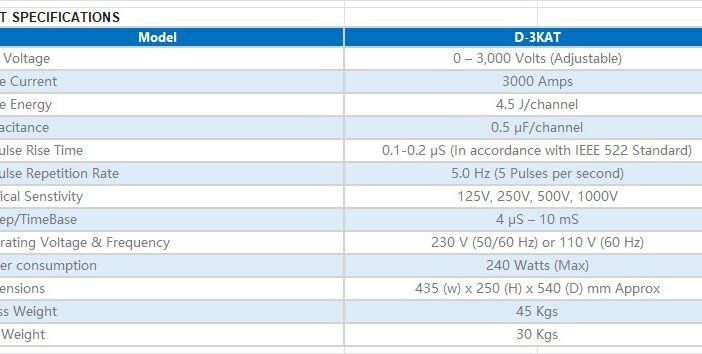

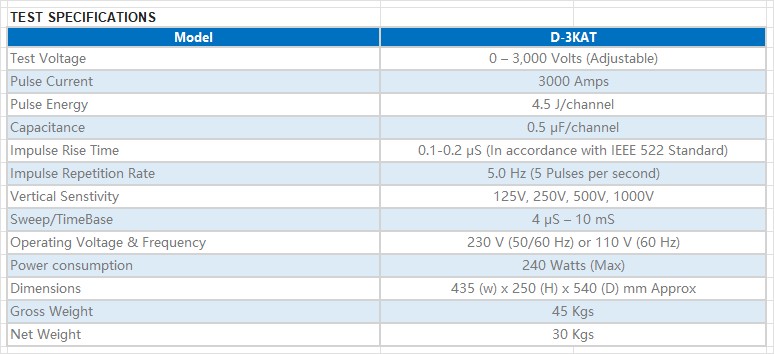

FEATURES

  • Infinite Model Storage Capability
  • Job Work Management Area For Motor Data Reference
  • Dual Feature To Either Store And Compare Against Master Waveform Or Compare Between Two Windings Simultaneously
  • Colour Coded Waveforms For Better Analysis
  • LABVIEW Software To Store, Print And Recall Surge Test Waveforms & Reports
  • Graphical And Numerical Representation Of %Error Between The Waveforms
  • Automatic Report Generation In MS Word
  • Target Voltage Indication Based On Motor Ratings
